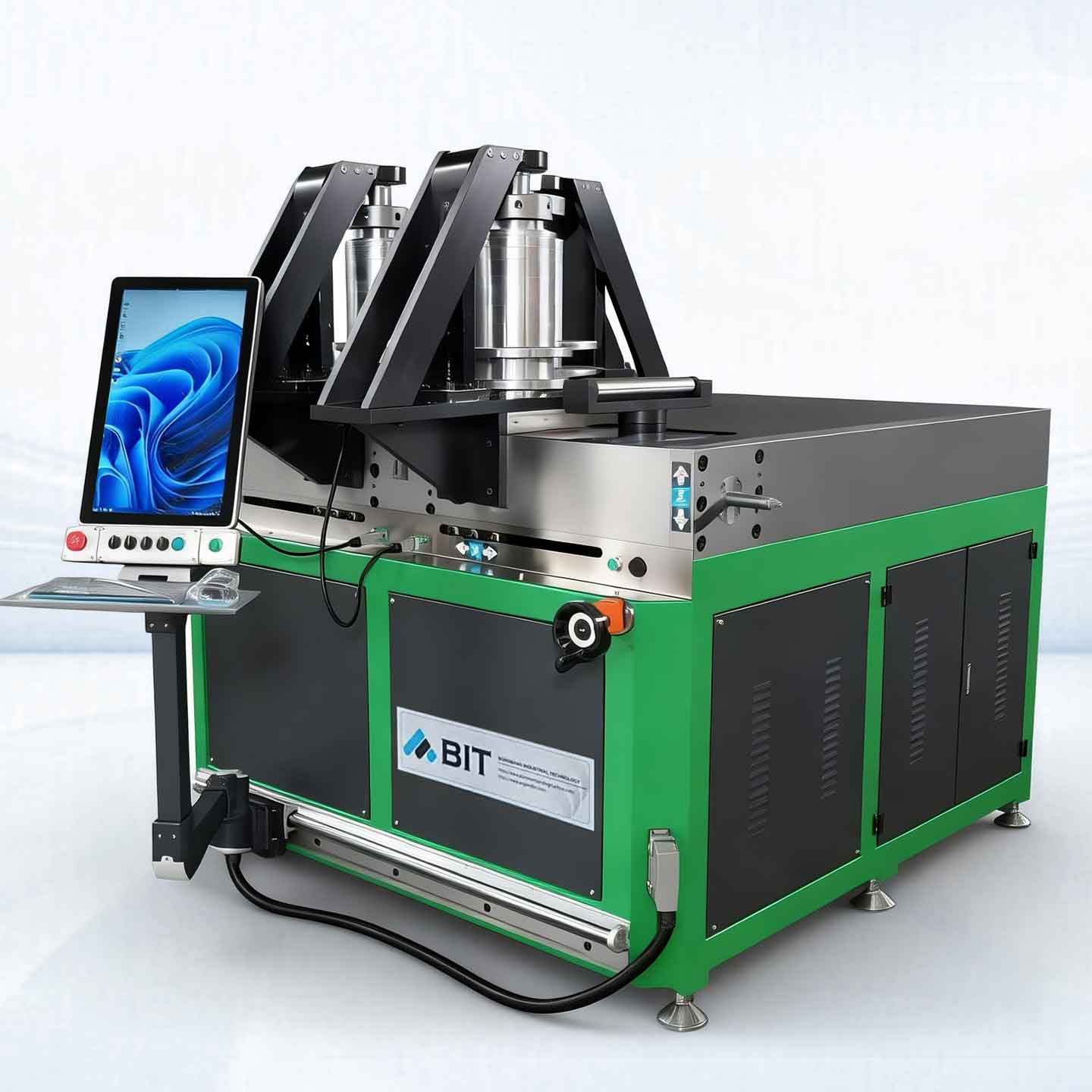

STRATOS 70
CNC Profile Bending Machine
70T thrust & 30,000Nm torque for extra-large Section Bending. Triple-Axis Independent Drive ensures slip-free forming. Supports 15-axis logic & Laser Radius Correction.
About STRATOS 70
CNC Profile Bending Machine
A high-capacity CNC powerhouse engineered for the most demanding sectors, including Skyscraper Structural Facades, Aerospace Frames, Tunnel & Bridge Ribs, High-Speed Rail, and Marine Infrastructure.
Massive Shaft Architecture:Features a monumental 150mm shaft diameter and a 530mm shaft height (customizable). This reinforced infrastructure provides the absolute rigidity required to prevent deflection when mastering extra-large, thick-walled metal extrusions.
- Supreme Servo-Hydraulic Force: Delivers a massive 70T standard X-axis thrust with an extended 600mm stroke. This closed-loop system provides the “raw-power-with-precision” necessary to yield high-strength alloys while maintaining ≤0.02mm repeat position accuracy.
- Unmatched Torque & Synchronization: All three shafts are independently driven by high-torque servos outputting a staggering Max. 30,000 Nm. This ensures synchronized, slip-free rolling (1-15 rpm) even for the heaviest structural sections, preserving surface integrity.
- Expansive Section Capacity: Specifically designed for massive profiles, with an insertion width of up to 530mm. This allows the machine to handle complex, large-scale Curtain Wall / Façade profile bending and heavy structural beams that smaller machines cannot accommodate.
- Multi-Axis Precision (Up to 15 Axes): Offers advanced modularity with optional control for up to 15 axes. This allows for the integration of complex auxiliary supports, 3D bending units, and CNC-controlled front shaft distance (680–1600mm) for maximum geometric flexibility.
- Intelligent 3D Workflow (Optional IPC): Supports an Industrial PC for direct DXF and .STEP file import. The system’s “Digital Brain” automatically calculates production formulas, simplifying the transition from complex CAD designs to high-force 70T production.
- Closed-Loop Radius Control: Fully compatible with Laser Radius Measurement & Correction Systems, providing real-time springback compensation. This is critical for maintaining consistency in long-span bridge components and aerospace structural spars.
- Engineered for Safety: Despite its massive power, the machine maintains an operator-centric design with the bending direction oriented away from the control station, ensuring a secure high-output environment.
STRATOS & AXON-Servo
Technical Data for High-End Aluminum Extrusions
| Model | AXON-Servo 12 | AXON-Servo 15 | AXON-Servo 25 | STRATOS 30 | STRATOS 40 | STRATOS 70 |
|---|---|---|---|---|---|---|
| X-axis | ||||||
| Max. Force X-axis (t) | 13 | 15 | 25 | 30 | 40 | 70 |
| Position Accuracy (mm) | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.02 | ≤0.02 | ≤0.02 |
| Driver | Servo Motor * 1 | Servo Motor * 1 | Servo Motor * 1 | Servo Hydraulic* 1 | Servo Hydraulic * 1 | Servo Hydraulic * 1 |
| Stroke Distance (mm) | 200 | 200 | 350 | 300 | 350 | 600 |
| Max. Insertion Width (mm) | 120 | 120 | 200 | 200 | 250 | 530 |
| Hydraulic Oil Volume (L) | – | – | – | 60 | 100 | 300 |
| Y-axis | ||||||
| Shaft Drive | Servo Motor * 3 | Servo Motor * 3 | Servo Motor * 3 | Servo Motor * 3 | Servo Motor * 3 | Servo Motor * 3 |
| Dyn. Shaft Speed Ctrl. (rpm) | 1-15/ (Cust.) | 1-15/ (Cust.) | 1-15/ (Cust.) | 1-15/ (Cust.) | 1-15/ (Cust.) | 1-15/ (Cust.) |
| Torque (Nm) | 3,500 | 6,000 | 6,000 | 8,000 | 11,000 | 30,000 |
| Shaft Height / Custom (mm) | 200 | 200 | 250 | 250 | 300 | 500 |
| Shaft Dia Ø (mm) | 50 | 60 | 80 | 80 | 105 | 150 |
| Deflection Corrector/Supports | Standard | Standard | Standard | Standard | Standard | Standard |
| Front Shaft Distance (mm) | 280-600 | 280-600 | 270-600 | 400-1200/3D | 400-800 | 450～1100 | 680～1600 |
| Z-Axis | ||||||
| CNC-Control | – | Optional | Optional | – | Optional | Optional |
| Force X-axis (t) | – | 5 | 10 | – | 10 | 15 |
| Position Accuracy (mm) | – | 0.1 | 0.1 | – | 0.1 | 0.1 |
| Lifting Distance | – | 0-120 | 0-150 | – | 0-150 | 0-200 |
| Driver | – | Servo Motor*2 | Servo Motor*2 | – | Servo Motor*2 | Servo Motor*2 |
| Control / Software | ||||||
| Flexible Panels | Standard | Standard | Standard | Standard | Standard | Standard |
| CNC System | Standard | Standard | Standard | Standard | Standard | Standard |
| Language | CN / EN / RU | CN / EN / RU | CN / EN / RU | CN / EN / RU | CN / EN / RU | CN / EN / RU |
| IPC / Industrial Control *1 | Optional | Optional | Optional | Optional | Optional | Optional |
| Laser Radius Measure*2 | – | Optional | Optional | Optional | Optional | Optional |
| Capacity | ||||||
| Min. Bending R (mm) | 100 | 100 | 100 | 150 | 150 | 250 |
| Max. Rolls Dia (mm) | 240 | 240 | 400/500 3D | 400 | 600 | 1000 |
| Max. W Bending (mm) | 120 (H: 60) | 120 (H: 80) | 200 (H: 80) | 200 (W: 90) | 300 (H: 80) | 300 (H: 160) |
| Max. H Bending (mm) | 200 (W: 40) | 200 (W: 50) | 250 (W: 65) | 250 (W: 70) | 300 (W: 80) | 500 (W: 100) |
